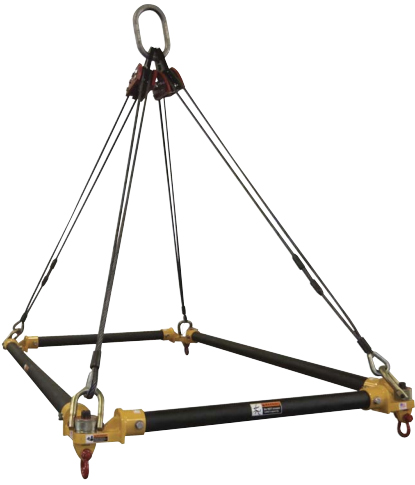

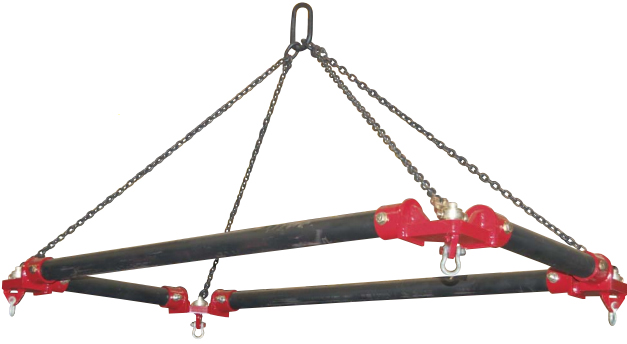

Four-Point “End Fitting” Beam

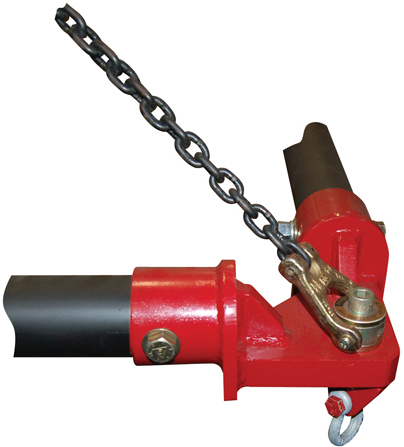

This beam is a convenient end fitting design that allows us
to build a custom size four-point spreader beam with a
QUICK SHIP delivery schedule. Capacities up to 9 tons
and spreads up to 10’ x 10’.

PRODUCT FEATURES:

• New knock-down design is easily transported.
• 6 or 9 ton capacity.
• Spreads up to 10′ x 10′.
• Four point spreader beam provides added stability
• Chain top rigging and hoist rings.
• Lower lifting shackles standard – see other options below.
• Complies with ASME standards.

BOTTOM RIGGING OPTIONS:
A. Lower lifting hooks – specify fixed or swivel.
B. Synthetic load slings.
C. Chain load slings.
D. Wire rope load slings.
Note: Some rigging options could increase delivery time.
