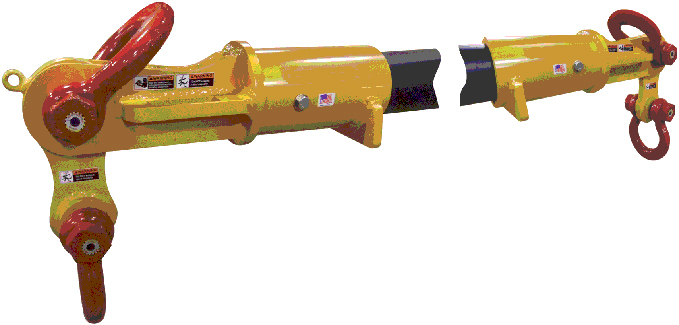

HC Beam End Fittings

The same end fittings that build our high capacity spreader beams are
available as end fittings only. This allows you to stock one or several
sizes of end fittings; work with a local steel supplier to provide cut to
length schedule 80 pipe; drill accordingly and add the required top
rigging. Now you can respond to your customers needs with a quickly
built, ASME compliant spreader beam.

PRODUCT FEATURES:

• Build your own spreader beam.
• Fittings only are available in 2 business days.
• Pivoting lower lugs allow for 75° to 90° lower rigging angle.
• Complies with ASME standards when assembled to specifications using designated pipe and rigging.

Products Specifications:

HC Beam End Fittings are designed to use A53 Grade B, schedule 80 pipe as the central structural element between the end fittings. This structural material is readily available at most steel service centers. See the chart below for the nominal A53 Grade B, schedule 80 pipe size required.

Other requirements are:

• The length of pipe used for this central element must be straight within 1/4″ end to end.
• The pipe should have the ends cleanly cut square with its centerline.
• The A53 Grade B, schedule 80 pipe must have the correct diameter holes drilled through both walls and both ends must be in line.
• The A53 Grade B, schedule 80 pipe used in this application does not need to pass any pressure testing.

Assembly pins are provided with the end fittings. The pins provided are only to be used to fasten the High Capacity Beam End Fitting (HC-BEF) to the properly sized A53 Grade B, schedule 80 pipe.

NOTE: Complete assembly instructions are provided with each set of end fittings.

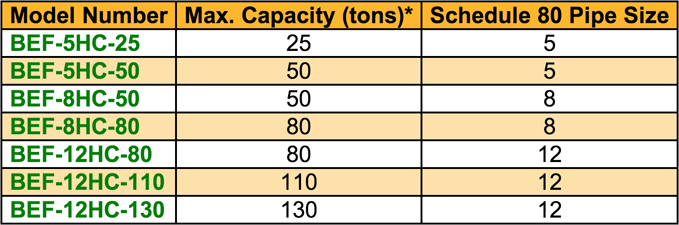

Specifications:

Model numbers shown in green are in stock.

Maximum End Fitting Capacity Per Pair.
* System capacity is determined by span, rigging, and hardware, consult factory for complete details.
