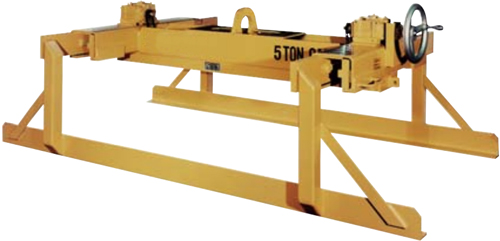

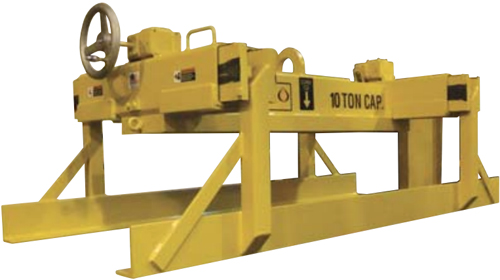

Heavy Duty Sheet Lifter

Mechanically operated lifter for versatile handling of bundles,
sheets, plates, and other materials stacked horizontally.

PRODUCT FEATURES:

  • Low headroom design for optimum lifting capabilities.
  • One person operation minimizes handling cost.
  • Self-locking worm gear drive for leg adjustment is standard.
  • Easy adjustment for different sheet widths.
  • Rack and pinion leg drive.
  • Designed for ease of maintenance.
  • Designed for greater sheet width range.
  • Complies with ASME standards.

heavy-duty-sheet-lifterheavy-duty-sheet-lifter-1

PRODUCT OPTIONS:

  • Hand wheel lockout.
  • Motorized leg adjustment.
  • Chain-wheel leg adjustment.
  • Extended length hand wheel leg adjustment.
  • End chains with plate hooks (recommended for all widths 72” and greater).
  • Extended grab shoe lengths available.
  • Additional bundle clearance available (longer legs).

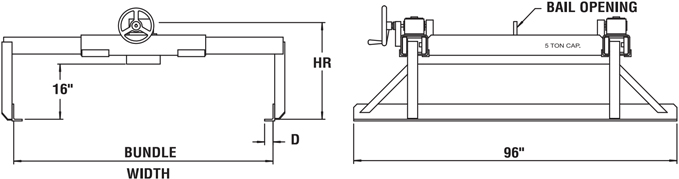

heavy-duty-sheet-lifter-diagramheavy-duty-sheet-lifter-diagram-2

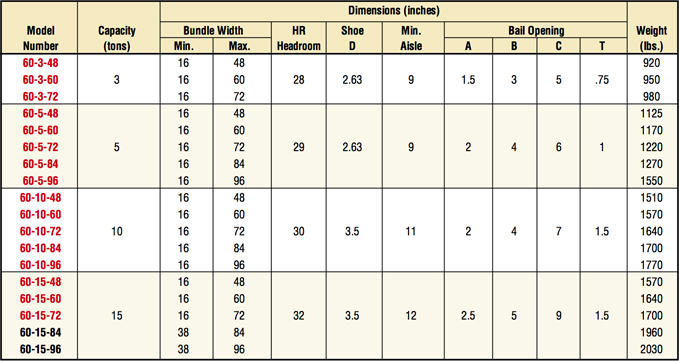

SPECIFICATIONS:

Heavy Duty Sheet Lifter
Other sizes available, call for details.
