Coil Cars

Coil Car

80,000 lbs.

• Narrow coil retainer arms
• Rotating blocker rolls
• Hold down roll
• Self contained power unit

Pit Type Coil Car

80,000 lbs.

• Self contained power unit
• All Four wheel driven
• Single point lubrication
• Heavy duty anti-friction bearings

Coil Car

30,000 lbs.

• Rotating V-Deck
• Hold down
• Self contained power unit

Coil Loading / Unloading Car

40,000, 50,000 & 60,000 lbs.

• Coil Width: 60” & 72”
• Coil O.D. : 72”
• Lift Stroke : 24” Standard
• Power Unit : Self Contained
• Traverse : 25’-0” Car mounted Cable Reel
• The Coil Loading or Unloading car is designed to receive, position and load or unload coils from an Uncoiler or Recoiler
• Welded steel plate mast type design elevating assembly
• “V” platform to secure coil
• Elevating assembly vertically guided by anti-friction camrols running on hardened steel bars
• Four (4) single flanged hardened steel wheels keyed to solid steel axle shafts riding in anti-friction bearings
• Lift position by hydraulic cylinder
• Traverse by hydraulic motor driving through chain and sprocket
• Self contained hydraulic pump unit
• Factory piped and wired
• Power supplied by car mounted cable reel
• 4-6 Week delivery

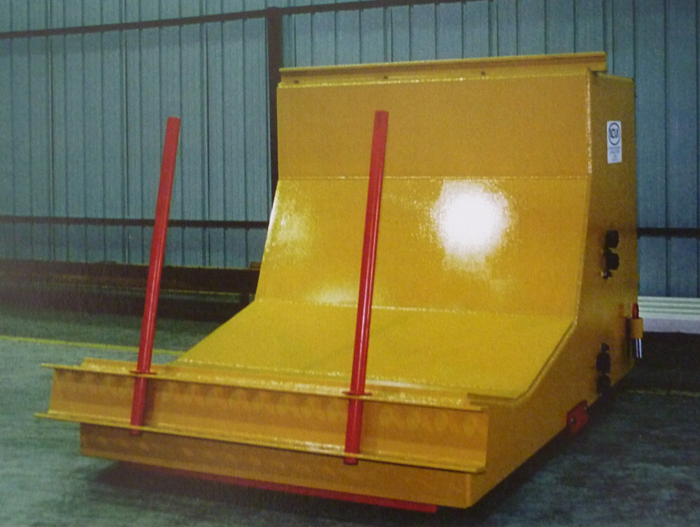

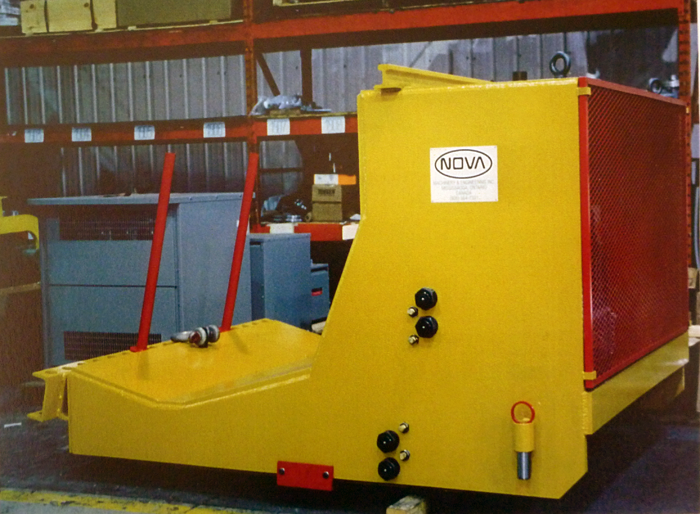

Nova 50k Coil Car

---

Nova Machinery & Engineering Inc. manufactures custom steel coil processing equipment. Nova products are available from Coil Processing Equipment Consultants.
If you need more information or a quote call 847-707-7185.
